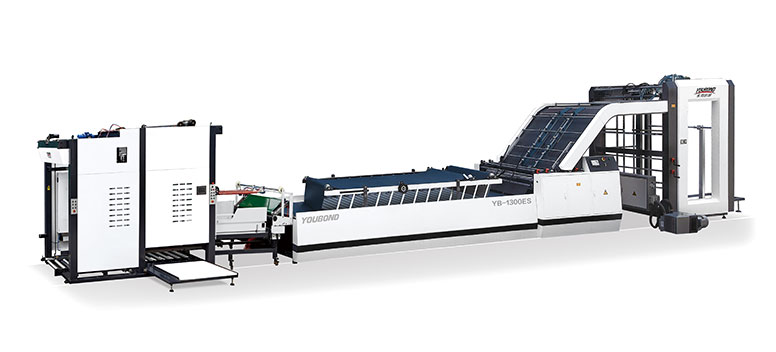

YB-1300BG-1450BG-1650BG Semi-automatic Flute Laminating Machine(high speed)

YB-1300BG-1450BG-1650BG Semi-automatic Flute Laminating Machine(high speed)

INTRODUCTION

This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. The top paper can pile up the height of 1.5m once time, it makes makes delivery more easier and efficientSingle feeding, bottom sheet feeding automatic, unilateral regulation, water roller cleaningTop Sheet 1.5m height pile, easy stack and feeding.

CHARACTERISTICS

The top paper can pile up the height of 1.5m once time , it makes delivery more easier and efficient..Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet. Machine uses touch-screen/PLC control system, the circuit system is stable,and can automatically display the failure alarm. The automatic replenishment system of glue can be added automatically during glue losses,and recycling with the glue to avoid loss of waste.The scientific design of the metering roller speed to ensure the glue vently on the same time , to avoid rejection of glue at high speed. Single side adjustment of the pressure roller, and equipped with a ressure gauge, with the record of the data , easy adjust ment when hange the size of bottom paper. Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank, back glue tank t the same time. Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating; Color top sheet 175-500g and grey cardboard paper laminating.

Model YB-1300BG YB-1450BG YB-1650BG
Max Sheet Size 1300×1250mm 1450×1250mm 1650×1250mm
Min Sheet Size 350×350mm 350×350mm 350×350mm
Total Power 8.5kw 9.5kw 11kw
Speed 0~90m/min 0~90m/min 0~90m/min
Machine Weight 4500kg 5000kg 5500kg
Dimensions 10×1.97×2.3M 10×2.02×2.3M 10×2.25×2.3M
