YB-1450HS/1650HS Servo Laminating Machine and Flip Flop Stacker

INTRODUCTION
High speed automatic laminating machine and flip flop stacker. First the printed sheet and corrugated is laminated accurately and pressed through the conveyor and then the laminated sheets be stacked based on the set amount in front and back side and slapped automatically and finally the stacked sheets come out automatically. The whole line achieves the high automation of the lamination.

AUTO COLLECTING. FRONT AND BACK PLACED STACKING

SAVE TIME AND EFFORT, SIMPLE AND EASY TO LEARN

SERVO COMPENSATION POSITIONING AUTOMATIC TRACKING SYSTEM

Model YB-1450HS(European version) YB-1650HS(European version)
Max Sheet Size 1450x1450mm(57"×57") 1650x1650mm(64"×64")
Min Sheet Size 420x400mm(17"×16") 420x400mm(17"×16")
Top Sheet Thickness 120-500g 120-500g
Bottom Sheet Thickness A、B、C、E、F Corrugated paper, Four ply corrugated paper, cardboard above 300GSM
Fitting Precision ±1mm ±1mm
Air Consumption 1.2m³/min 1.2m³/min

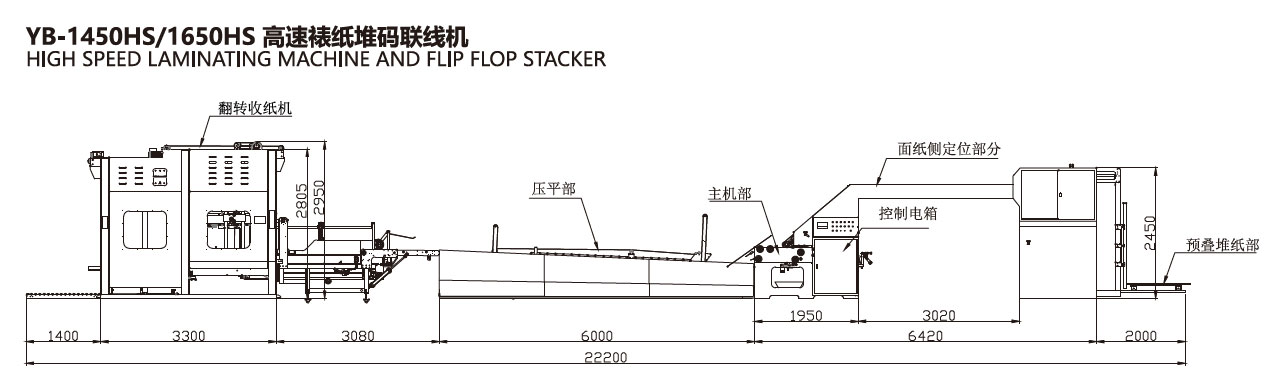

Measurement 22×2.4×3M 22×2.6×3M
Machine Power 35KW 38KW

Detail parts
BOTTOM PAPER FEEDING
Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
TOP SHEET FEEDING MECHANISM
Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
ELECTRICAL SYSTEM
Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
PRE-STACK PART
Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.
GLUE ROLLER
Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.
TRANSMISSION
With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.

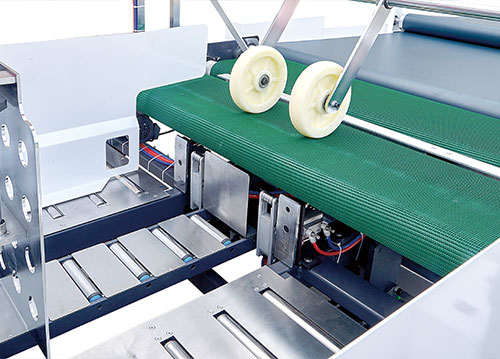

POSITIONING SYSTEM
The use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do indepen-dent compensation action, so that accurate positioning of top paper and the bottom paper.
FILP FLOP SYSTEM
Stacking the laminated sheet based on the set amount in front and back side automatically
