AUTO PRESSURE ADJUSTMENT、AUTO GLUE ADJUSTMENT
MAX SPEED 200M/MIN
CASTING FRAME 40MM, LARGE DIAMETER ROLLER TRANSMISSION 165MM
CARDBOARD TO FLUTE & CARDBOARD TO CARDBOARD
TOP SHEET STREAM FEEDING WITH SIDE PULLING BALL POSITIONING
FULL SERVO MOTOR CONTROL(9 SERVO MOTORS)
|
MODEL
|
YB-1450HG
|
YB-1650HG
|
|
Max Sheet Size
|
1450x1450mm(57"×57")
|
1650x1650mm(64"×64")
|
|
Min Sheet Size
|
380x350mm(15"×14")
|
380x350mm(15"×14")
|
|
Top Sheet Thickness
|
120-500g
|
120-500g
|
|
Bottom Sheet Thickness
|
A、B、C、E、F Corrugated paper, Four ply corrugated paper, cardboard above 300GSM
|
|
Fitting Precision
|
±1mm
|
±1mm
|
|
Air Consumption
|
0.2m³/min
|
0.2m³/min
|
|
Measurement
|
15.5×2.4×2.4M
|
15.7×2.6×2.4M
|
|
Machine Power
|
22KW
|
25KW
|
|
Glue Application
|
White glue、Starch glue
|
Detail parts
BOTTOM PAPER FEEDING

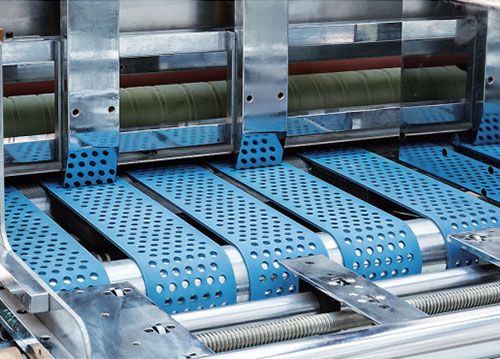

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation.
TOP SHEET FEEDING MECHANISM

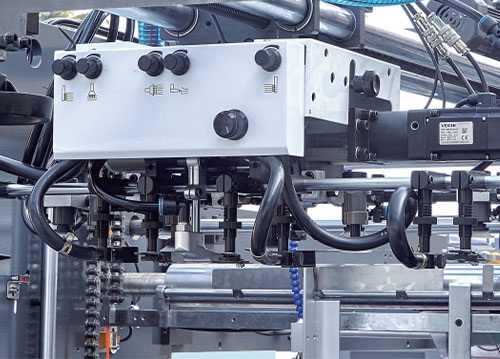

Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly.
ELECTRICAL SYSTEM

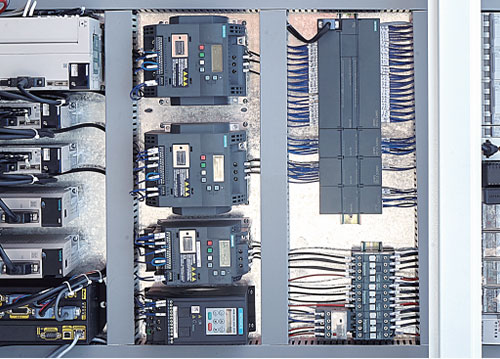

Designed in the accordance with European CE requirement, ensure Heavy Duty Intelligent flute laminating machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
PRE-STACK PART

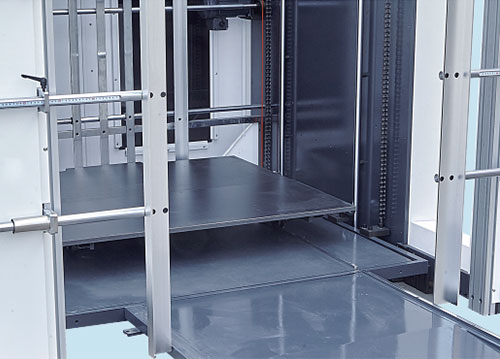

Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.
GLUE ROLLER

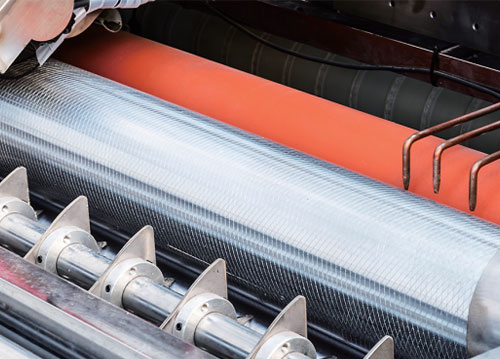

Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.
TRANSMISSION

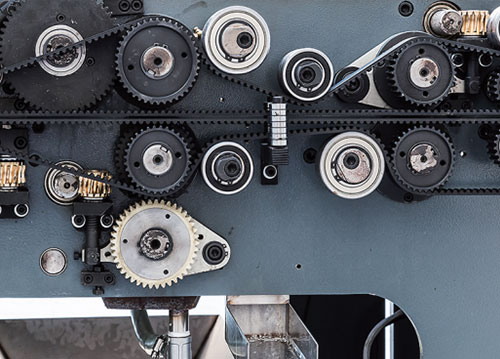

With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.
POSITIONING SYSTEM

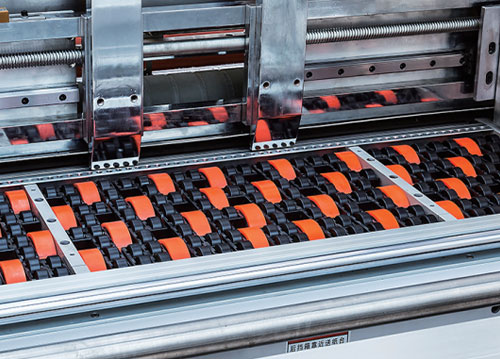

The use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do indepen-dent compensation action, so that accurate positioning of top paper and the bottom paper.
LEADING EDGE FEEDING SYSTEM（OPTION）

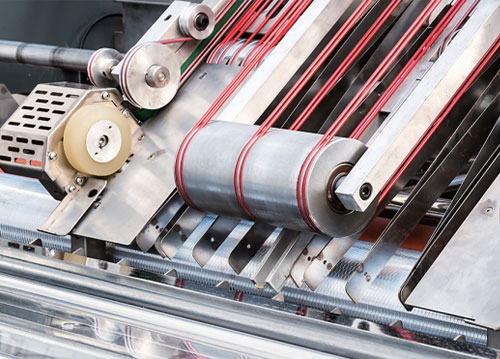

This system is for option, more suitable for large size and thick bottom sheets.
