YB-1300ES/1450ES/1650ES Automatic Flip Flop Laminating Machine

INTRODUCTION

The latest achievements of laminating machine automation process, flip flop collect paper instead of artificial collect paper, automatic positive and negative stacked in one pile, liberating of your hands. Doing all by machines, you only checking.

PDF Download Request a Quote

Characteristics

High precision paper feeding mechanism

Bottom and top paper automatic tracking

Non-stop collection make continuous production

Positive and negative stack of paper, automatic trimming

Time Saving, Sophisticated laminating machine

Specifications

Model	YB-1300ES	YB-1450ES	YB-1650ES
Max Sheet size	1300*1250MM	1450*1250MM	1650*1450MM
Min Sheet size	500*500MM	500*500MM	500*500MM
Top sheet thickness	150-600GSM	150-600GSM	175-700GSM
Bottom sheet thickness	A.B.C.E.F corrugated paper, industrial cardboard
Machine speed	7500sheets/Hour	7500sheets/Hour	7500sheets/Hour
Fitting precision	±1mm	±1mm	±1mm
Measurement	20x2.6x3M	20x2.6x3M	21x2.8x3M
Machine weight	8000KG	8500KG	9000KG
Machine Power	16KW/380V	17KW/380V	18KW/380V

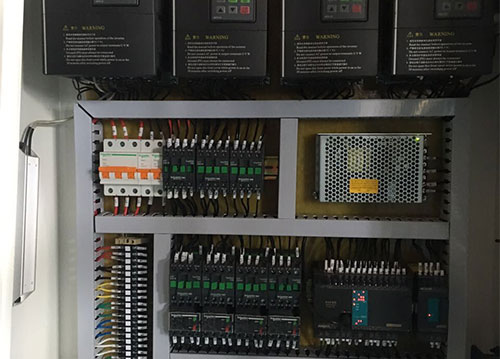

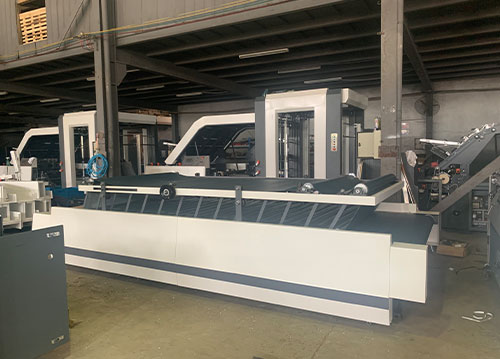

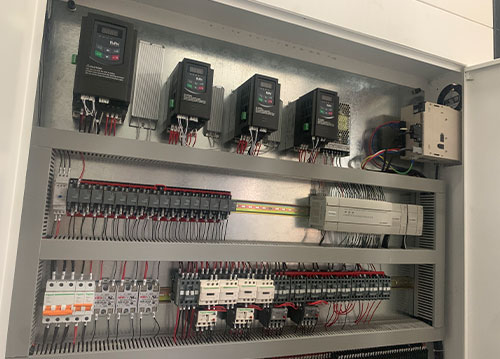

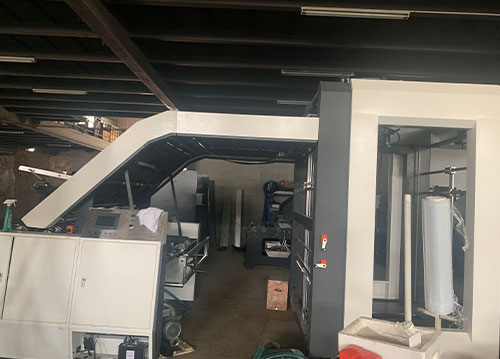

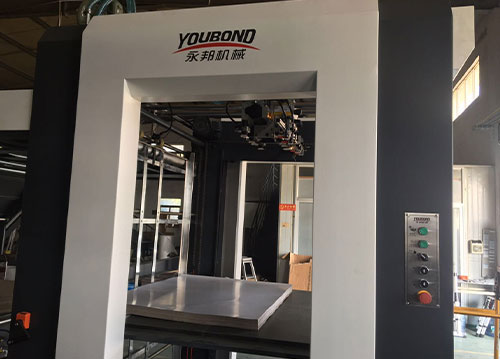

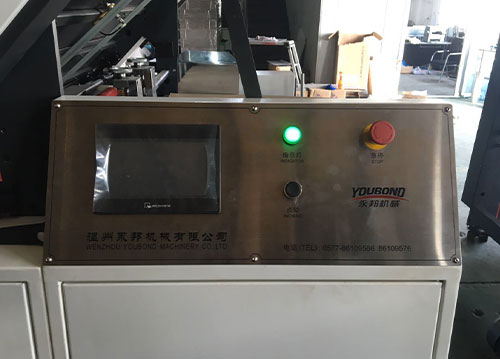

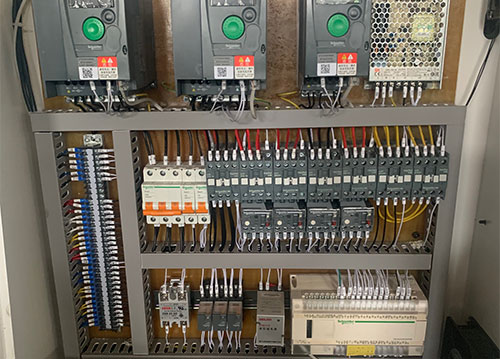

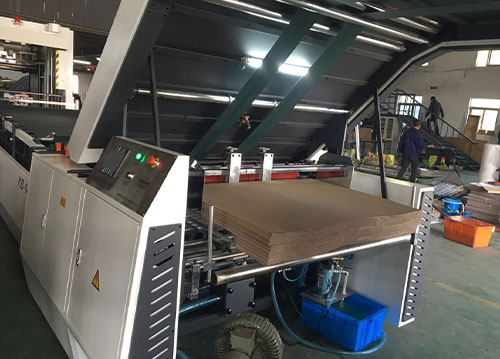

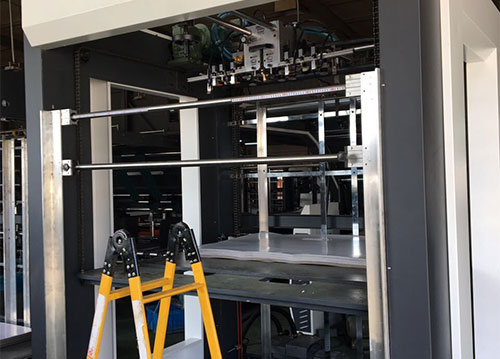

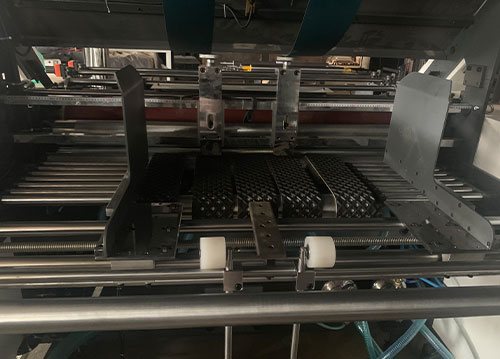

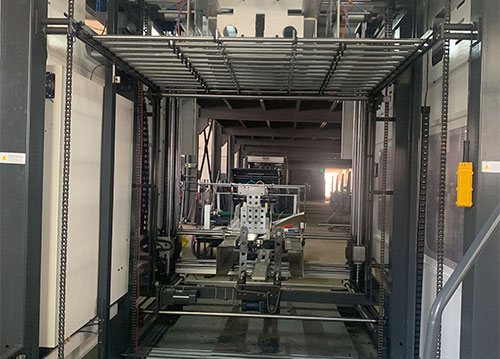

Detail parts
