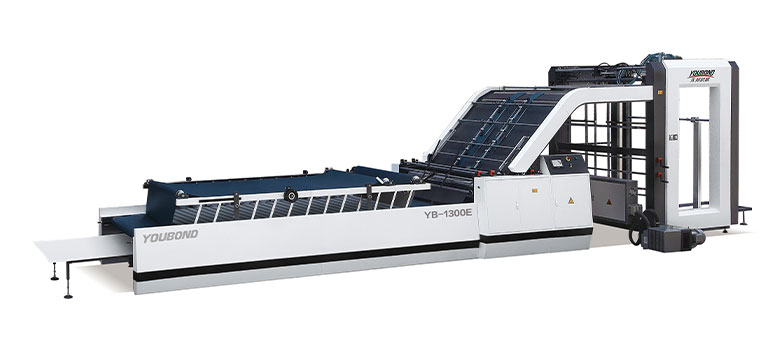

YB-1300E/1450E/1650E Cardboard to Flute Laminating Machine

INTRODUCTION
This cardboard to flute laminating machine is used for color top sheets and corrugated paper laminating, top paper adopt scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never exceed. Easy operation and maintenance.

Fixed front gauge registration

Visual feast, Perfect design



Characteristics

Advanced automatic tracking technology, according to the size of the paper automatically adjust the relevant parameters, so that the machine is always running in the best condition

Unique front gauge positioning system, accuracy and the bottom paper never exceed; top paper exceed adjustable

Cardboard to Flute Laminating Machine equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly.

Using the principle of offset printing machine side gauge positioning, error correction for about top paper stack and feeding process;

Bottom paper using suction automatic feeding, can adjust wind strength in the touch screen, and is equipped with a belt humidifying function;

Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency

Imported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm;

Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated with the glue recycling

Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller、glue receive tank and back glue tank;

Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper onestep- to- reach.



Specification

Model

YB-1300E

YB-1450E

YB-1650E

Max Sheet Size

1300×1250mm

1450×1250mm

1650×1450mm

Min Sheet Size

400×400mm

400×400mm

400×400mm

Top Sheet Thickness

150-600g

150-600g

150-600g

Bottom Sheet Thickness

A、B、C、E、F (Corrugated paper), (Industrial paperboard)

Max Speed

6000Sheets/hour

6000Sheets/hour

6000Sheets/hour

Fitting Precision

±1mm

±1mm

±1mm

Dimensions

11.5×2×2.4M

11.5×2.2×2.4M

11.5×2.4×2.4M

Machine Weight

5000kg

5500kg

6000kg

Machine Power

10KW/380V

11KW/380V

12KW/380V

Detail parts

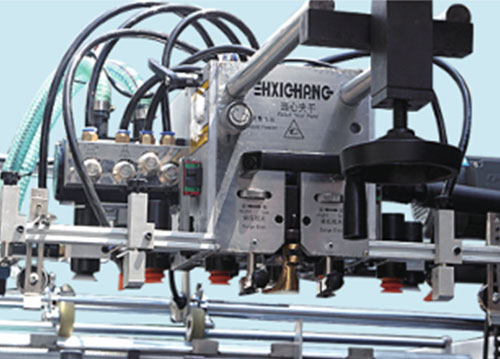

Top Sheet Feeding Mechanism
High precision high speed automatic feeder, feeding smoothly. Strengthening type paper feeding device, nozzle angle is adjustable, suitable for different type of papers.

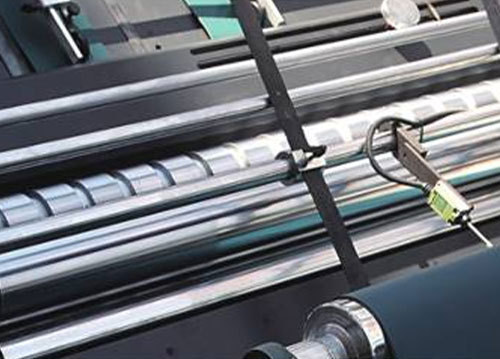

Pressure Regulation Positioning
Single pressure regulation, to ensure that the two side pressure be same. With the display of dial gauge, it is easy to adjust when change the paper.

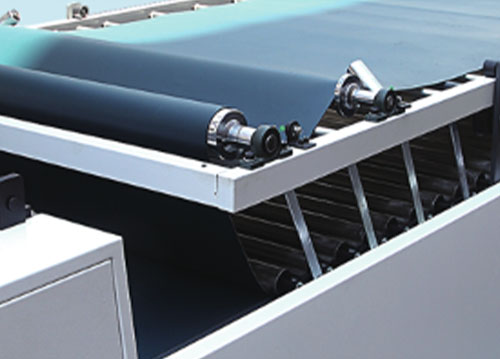

Transmission
Floating design of press, no need to adjust the pressure. Heightening design, smooth working for thick corrugated paperboard.

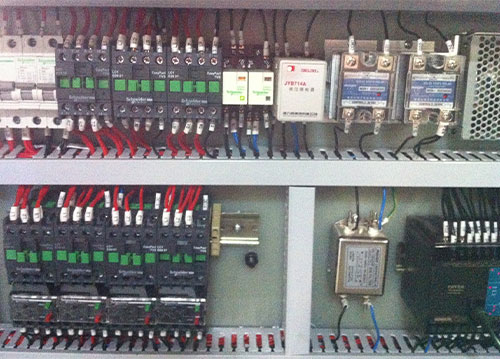

Electrical System
Main electrical components are imported brands. PLC tracking technology, automatic fault detection.

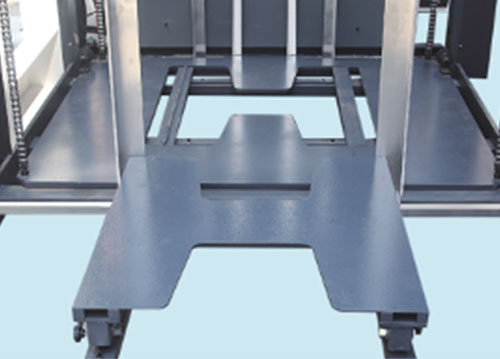

Pre-Stack Part
Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency. Using the "working" font design, the platform can be used to push and easy back, labor saving.
Side Positioning (Option)
Side Gauge Positioning, error correction for about top paper stack and feeding process. Similar with the principle of offset printing machine, positioning accuracy.
