Automatic 5ply Flute Laminating Machine

INTRODUCTION
A 5-ply flute laminating machine designed for laminating printed cardboard and corrugated paper. This advanced machine features three automatic feeding sections: one for top sheets and two for corrugated paper. It includes two separate gluing stations, two laminating units, and a dedicated pressing conveyor, all integrated into a cohesive system. This three in one flute laminating machine ensures efficient and precise processing for high-quality results.
Introduction

Suitable for the laminating of cardboard to A flute+A flute,A flute+B flute,A flute+E flute,B flute+A flute,B flute+B flute,B flute+E flute,E flute+A flute,E flute+B flute,E flute+E flute, corrugated could be changed as needed. It could also laminate cardboard to single flute to make 3ply sheet. And also for the lamination of corrugated to carrugated to 4 ply corrugated paper. A good 5ply Flute Laminating Machine for the printing process,good accuracy and quick operation, labor and time saving



Division introduction

This 5 ply flute laminating machine consists of one paper feeding section, two corrugated feeding sections, and two sets of gluing devices. It can laminate three paper types together at one time, gluing, aligning, and laminating simultaneously to avoid secondary lamination. Eliminate low efficiency and improve production efficiency. All three channels equipped with servo tracking and compensation devices, and all three channels can be adjusted with one key. The pressure and glue amount are also automatically adjusted synchronously, which can solve the problem of small batch production of 5layer color boxes in existing carton factories.

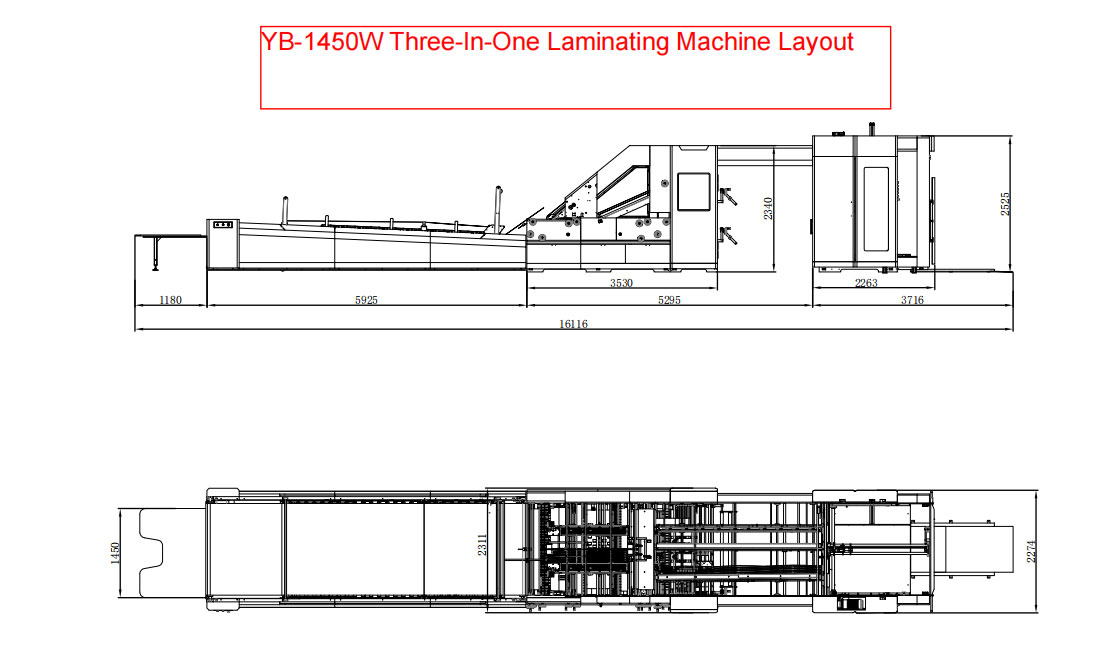

FOUNDATION LAYOUT



SPECIFICATION
Model YB-1450W YB-1650W
Max size 1450×1450mm 1650x1450mm(64”x57”)
Min Size 380*350mm 380x350mm(15"x14”)
Top sheet tickness 120-500g 120-500g
Bottom paper thickness A、B、C、E、F corrugated paper、4ply corrugated paper、cardboard above 300gsm
Dimension 16.5x2.4x2.5M 16.5x2.6x2.5M
Power 40KW 42KW
Weight 10000kg 11000kg
Glue Application White Glue, Starch Glue
Max speed 120m/min
Precision ±1mm
