YB-1650G Automatic High Speed Laminator For corrugated paper to corrugated paper

Features

Max speed 10000sheet/hour

The most advanced electrical control system

Full accomplishment of intelligence and automation

Automatic adjustment when changing sheet size

Curve velocity assures the high accuracy

The newest technology of intermittent registration

Top and bottom sheet automatic tracing

Bottom sheet left and right whole course correction

Top sheet left and right whole course correction

Intelligent detection of sheet length

Intelligent error display and alarm system

Intelligent glue supplying and recycling system

Intelligent cleaning and water circulation system

Bottom sheet bend and pressurize device

Bottom sheet suction power adjustment device

US MAC component opens and closes suction

Stainless steel gluing cylinder

Anti glue swing device

Specification

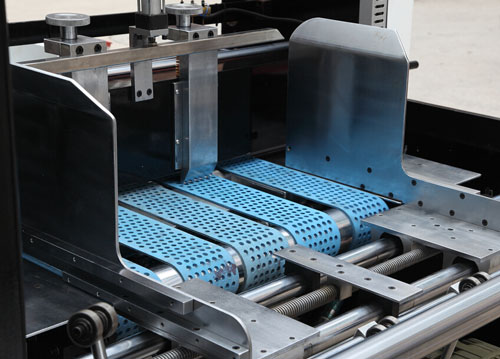

Top and Bottom paper feeding

Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation

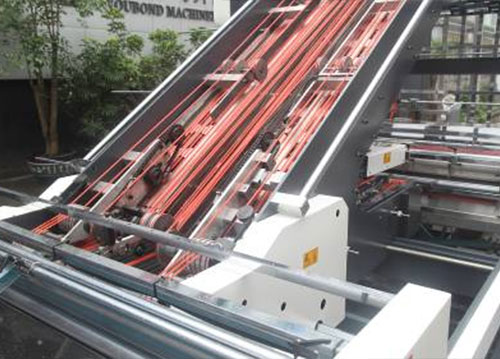

Positioning Part

Servo control of the intermittent fixed position, in the process of positioning, positioning gauge work as” start – speed up – tracking-speed reduction-stop ” curve speed run, make sure positioning more accurate.

Side positioning

Left and right side synchronous block complete the accurate positioning, both top sheet and bottom paper are equipped with accurate positioning device on left and right.

Glue roller

Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.

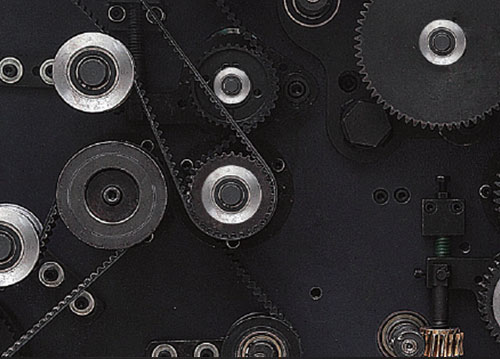

Transmission

With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy.

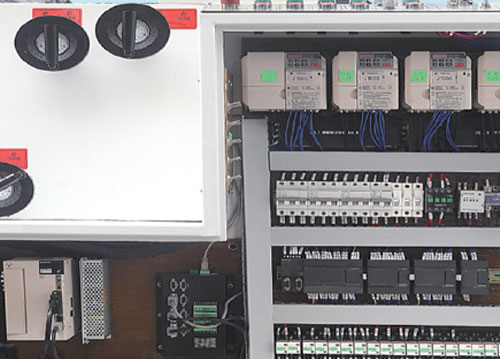

Electrical system

Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance.
