YB-1450S/1650S Automatic Flip Flop Pile Turner

INTRODUCTION
The Automatic Flip Flop Pile Turner is a specialized accessory for sheet-to-sheet laminating machines, compatible with any manufacturer's equipment. This integrated device automatically stacks laminated papers into piles according to a specified count. It performs functions such as collecting, stacking, intermittently flipping, and stacking papers with their fronts and backs aligned. This process effectively prevents curved laminated papers and reduces the manual effort required for stacking.
Features

Auto Collecting

Front and Back Placed Stacking

Collecting Orderly

One Key Operation

Fault Detection

Easy Connecting

Space Saving

Simple and easy to learn

Save time and effort



Function Introduction

Paper Separating system

The paper separating system utilizes a driving wheel and a laminating press belt joint for power transmission. Laminated paper is stacked onto a pallet in a downward manner by the driving wheel and synchronous belt. Once the specified quantity is reached, a separating rod lifts to separate the paper.



Specification

Model

1450S

1650S

Max Sheet size

1450X1450

1650X1450

Min Sheet size

500X500

500X500

Overall

6830X2760X2950

6830X3160X2950

Weight

3700KGS

4000KGS

Power

6KW

6KW

Detail parts
Paper Separating system
Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.
Down Push System
Driven by the cylinder two pawl forward movement, push the set up quantity paper into a turnover device.
Turning System
Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.
Up Push System
Using The motor drives the chain to drive the upper push plate to move forward and backward pushing the lifting paper into collecting system and waiting to be piled.
Piling System
Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat.
Collecting System
When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished.

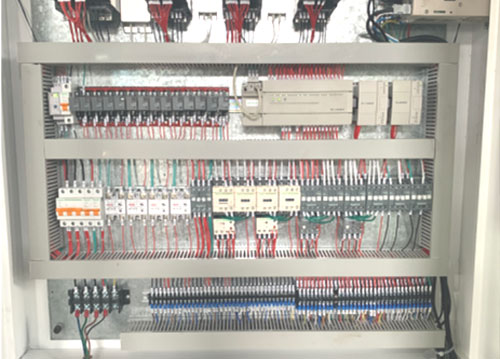

Electronic Unit
All parts adopt well-known brand, reasonable program design, working by one key to complete the operation, automatic fault detection.
