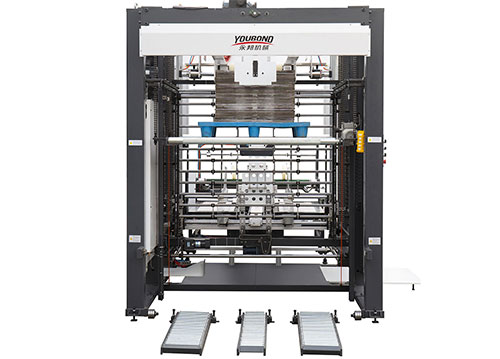

YB-1450S/1650S Auto Pile Turner and Stacking Machine

INTRODUCTION
Auto Pile Turner and Stacking Machine is the special accessory products for sheet to sheet laminating machines and can be connected with any of manufacturer’s laminating machine. This integrative equipment can auto make the laminated papers to piles according to specified number. With collecting, piling, intermittent turning and stacking functions, realize collected paper front and backside placed stacking, effectively prevent laminated paper curving and manpower-saving for labor collecting strength.
Characteristics

Auto Collecting

Front and Back Placed Stacking

Collecting Orderly

One Key Operation

Fault Detection

Easy Connecting

Space Saving

Simple and easy to learn

Save time and effort



SPECIFICATION
Model 1450S 1650S
Max Sheet size 1450X1450 1650X1650
Min Sheet size 500X500 500X500
Overall 8170*2215*2950 8970*2415*2950
Weight 4100KGS 4570KGS
Power 6KW 6KW
Detail parts
Paper Separating system

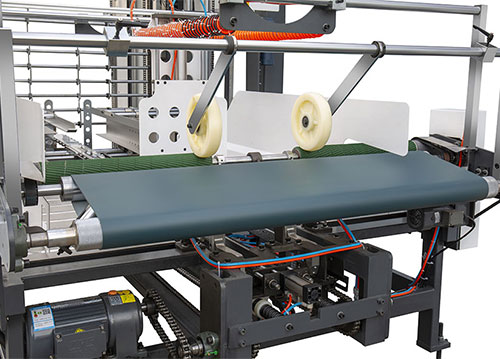

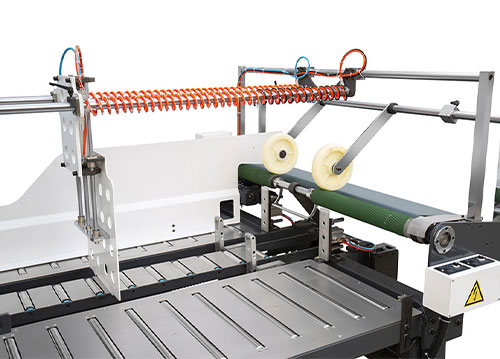

Driving wheel and laminating press belt joint to transmit power. Laminated paper be stacked down to down pallet by driving wheel and synchronous belt, when reach the specified number, separating rod lift and separate the paper.
Down Push System

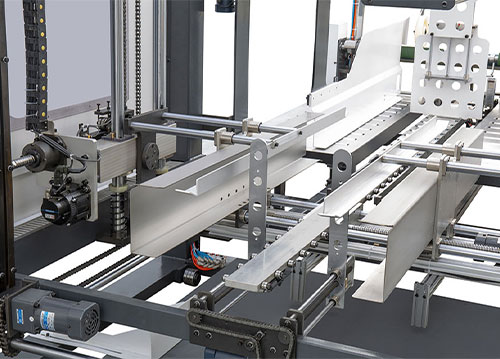

Driven by the cylinder two pawl forward movement, push the set up quantity paper into a turnover device.
Turning System

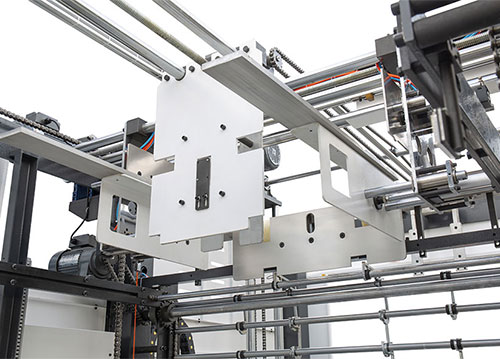

Using the automatic clamping system to make paper front and back alternately placed, make sure the laminated paper smooth and stiff, convenient for subsequent production line.
Up Push System

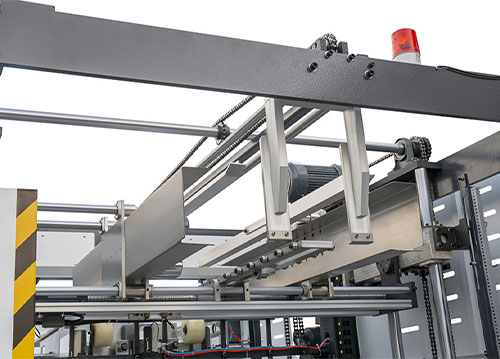

Using The motor drives the chain to drive the upper push plate to move forward and backward pushing the lifting paper into collecting system and waiting to be piled.
Piling System
Reciprocating motion of four splint patting the collected paper orderly, ensure the collecting neat.
Collecting System
When the paper stacking to 1.7M in height, collecting platen automatic drop, hydraulic car will pull out the whole stack of paper, at the same time the vice paper collecting table automatic work, complete non-stop collecting finished.
Electronic Unit

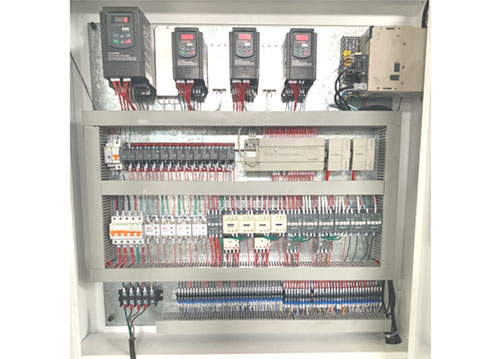

All parts adopt well-known brand, reasonable program design, working by one key to complete the operation, automatic fault detection.
